Sync Momentum & ZZ Reversion

Two Strategies, Two Timelines, One Lesson

This book documents two complementary trading engines. Their origin stories couldn't be more different — and that difference is the point.

Sync Momentum took 14 months. From the first observation in January 2025 — "BTC and ETH move first, correlated altcoins follow with a measurable lag" — through four major versions, thousands of parameter combinations, a Pine Script v6 migration disaster, a competition that tested it against 46,000 traders, and countless 3 AM debugging sessions.

ZigZag Reversion took 2 days. On March 5, 2026, the idea crystallized during a conversation about fractal self-similarity in ZigZag leg structures. By March 7, there was a working HTML paper trader connecting to live exchange WebSocket feeds, a 1,200-line Python optimizer that had swept millions of parameter combinations, and empirical results showing $2K → $255K without fees and $2K → $221K with real MEXC fees on 34 days of BTC 15m data. The system is already running online with real data and real fees.

The two strategies are complementary by design. Sync Momentum catches directional impulses — it enters fast, rides momentum, and exits on trailing stops. ZigZag Reversion does the opposite — it enters against the move, averages down intelligently, and exits when price reverts to the mean. One profits from continuation, the other from reversion. Together, they cover both market regimes.

PnL Records — $2,000 to Six Figures in 34 Days

Two parameter configurations, both starting from $2,000, both on 34 days of BTCUSDT 15-minute data. One shows the theoretical ceiling (fees off), the other proves it survives real-world friction (fees on). Both are running live on the Paper Trader connected to Binance WebSocket.

Record 1 — Without Fees: $2K → $255,100

Final Equity

$255,100

Return

+12,655%

Trades

65

Win Rate

100%

Max DD

0.00%

Benchmark A — fees disabled to expose raw engine behavior and the upside ceiling.

Parameter	Value	Why
Leverage	96×	Optimal amplification without max stress
Base Size	$0.77	Larger base = faster compounding start
Sizing	DblTot	Each add = previous total × 2
Eff. Adds	2/5	Skip-adds for concentrated positioning
Add Spacing	Fibonacci	22× more price distance than fixed
Legs Sync	6TF 3.0×	Direction-validated size boost
Add Boost	5.0×	Sync-validated add multiplier
Nesting	0.91	Amplitude coherence weight
Fees	OFF	Theoretical ceiling — raw engine output

All 65 trades closed profitable on this 34-day window. Reported 0.00% max drawdown. The engine is selective, not hyperactive. This is the theoretical ceiling — what the engine can produce when friction is removed.

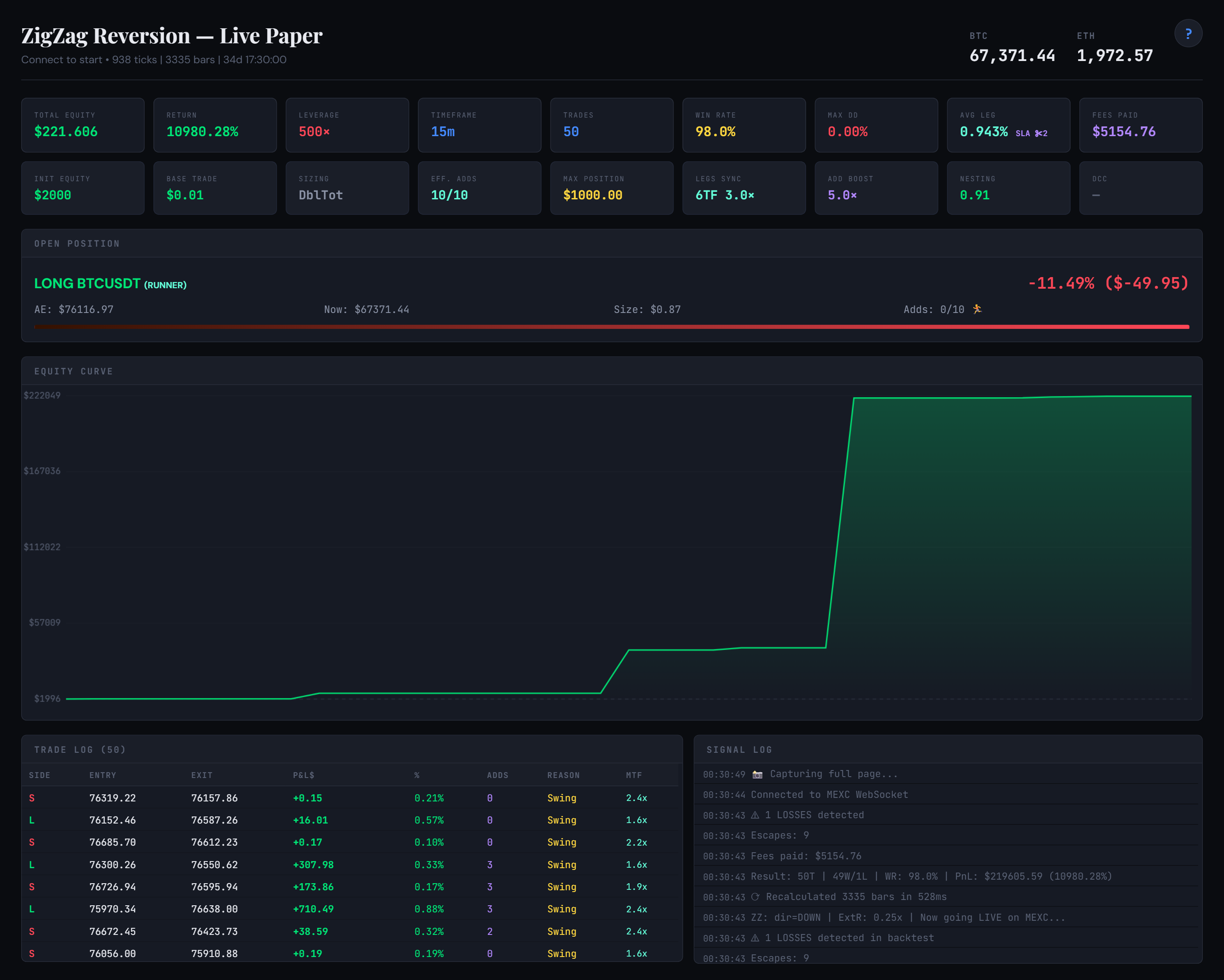

Record 2 — With Real Fees (MEXC): $2K → $221,606

Final Equity

$221,606

Return

+10,980%

Trades

50

Win Rate

98.0%

Max DD

0.00%

Fees Paid

$5,155

Benchmark B — MEXC fees enabled, proving the engine still compounds hard after real trading costs.

Parameter	Value	Why
Leverage	500×	Maximum amplification — the Leverage Paradox
Base Size	$0.01	Maximum compounding headroom
Sizing	DblTot	Each add = previous total × 2
Eff. Adds	10/10	All adds active — $0.01 base means all fit
Add Spacing	Fibonacci	22× more price distance than fixed
Legs Sync	6TF 3.0×	Direction-validated size boost
Add Boost	5.0×	Sync-validated add multiplier
Nesting	0.91	Amplitude coherence weight
Fees	ON (MEXC)	$5,155 in real fees — still reaches $221K

This is the new "PnL Winner" preset — beating the previous Binance-fees record ($185K) by switching to MEXC's lower fee structure. Same Leverage Paradox architecture: 500×, $0.01 base, DblTot. Only 1 loss out of 50 trades — 98% win rate with 0.00% max drawdown.

Multi-Asset Validation — Not Just BTC

The BTC records above are spectacular, but the obvious question is: does this only work on Bitcoin? The answer is no. The same engine, same architecture, same 34-day window — applied to ETH and SOL with conservative 20× leverage — produces 10× returns on both assets with real MEXC fees.

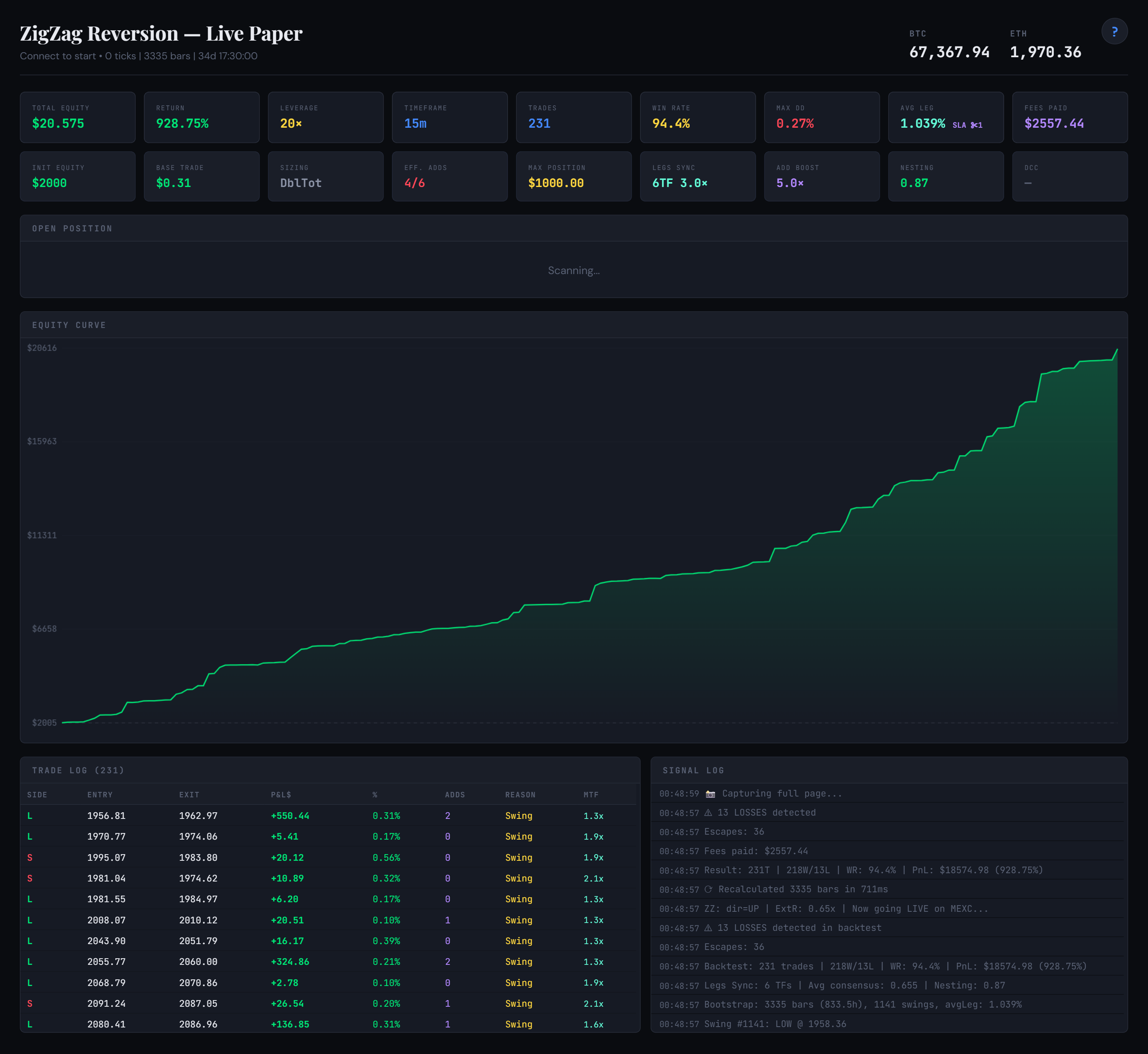

ETHUSDT — $2K → $20,575

Return

+929%

Trades

231

Win Rate

94.4%

Max DD

0.27%

Fees

$2,557

ETH 15m · 20× leverage · $0.31 base · DblTot · Fib spacing · 6TF Legs Sync

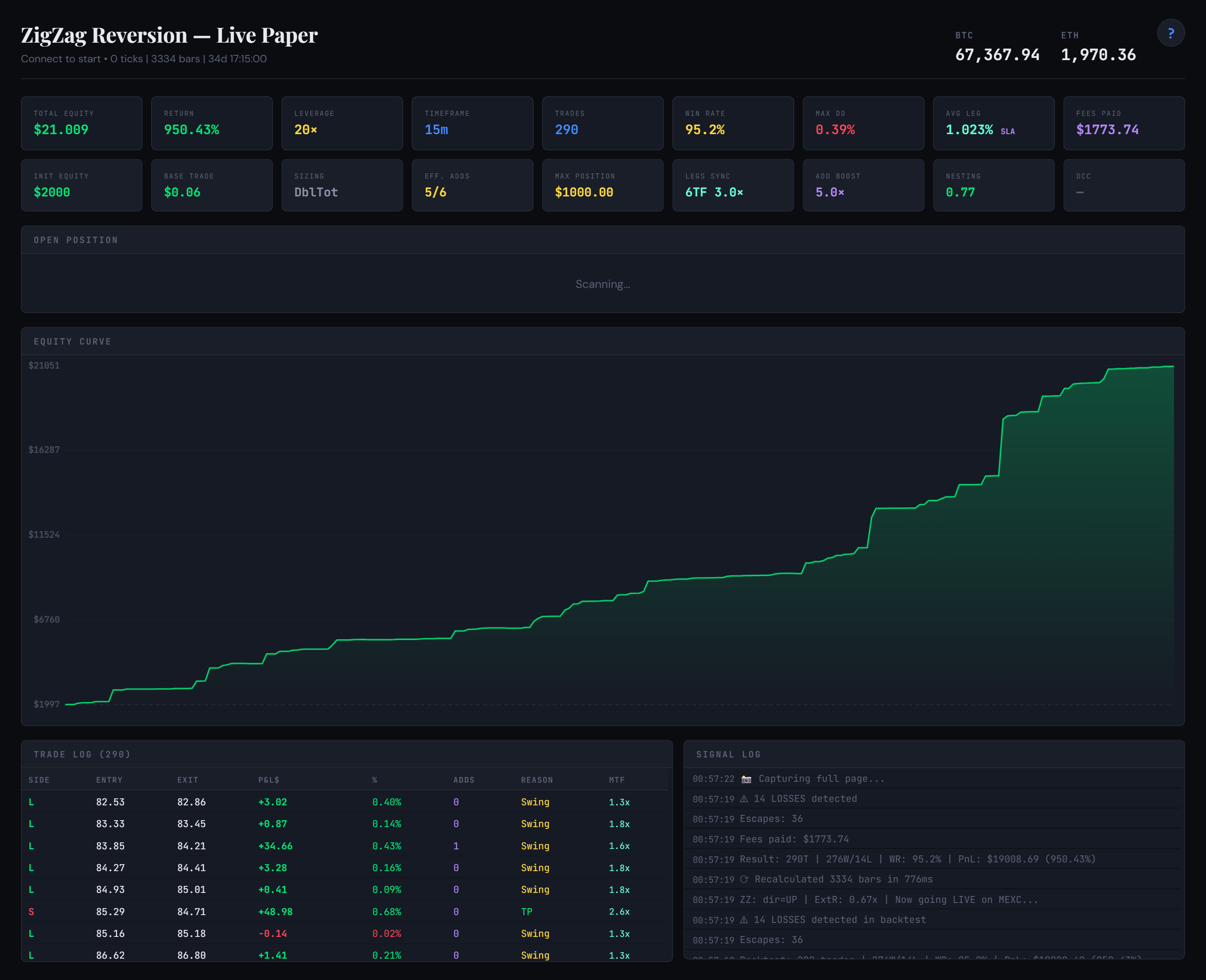

SOLUSDT — $2K → $21,009

Return

+950%

Trades

290

Win Rate

95.2%

Max DD

0.39%

Fees

$1,774

SOL 15m · 20× leverage · $0.055 base · DblTot · Fib spacing · 6TF Legs Sync

Both use only 20× leverage — not the extreme 500× of the BTC record. These are conservative configurations that still 10× the starting capital in 34 days. The equity curves are smoother than BTC's (more trades, more gradual compounding), the win rates are 94–95%, and the drawdowns stay under 0.4%. This confirms the strategy exploits a structural market property — mean reversion within ZigZag swing structure — not a BTC-specific artifact.

Genesis — From Correlation Insight to Working Engine

Every trading system has a founding observation. Most never survive first contact with real markets. This one did — because the observation is structural, not statistical.

The Origin Insight

In January 2025, the core observation crystallized: BTC and ETH move first. Correlated altcoins follow with a measurable lag. On 1-second timeframes, this lag is not milliseconds (that's HFT territory requiring co-location) — it's 1–3 seconds. Long enough for a retail trader on MEXC's zero-fee perpetual futures to capture.

The zero-fee element is not optional. At 160 trades per day on 100x leverage, even 1 basis point per side would consume 320 bps daily — destroying the 24 bps average winner entirely. MEXC's permanent 0% maker fee promotion on select perpetual pairs is what makes this edge extractable.

The Four Phases of Evolution

And then 1s Sync Momentum v2.2 happened — the distillation. Where v6.0 is a 16,000-word operational manual, v2.2 is 1,068 lines of Pine that capture the essence: sync + impulse + ATR-adaptive trailing. The 28-day backtest showed +70,136% return, validating the theoretical framework with executable code.

The V2.2 Engine — Deep Technical Analysis

Signal Pipeline

The entry logic is two gates in series. Both must fire simultaneously while flat.

Gate 1 — Sync (Cross-Correlation)

Over the last syncLen bars (default: 2 on S3), compute the percentage change of the chart symbol and the sync partner(s). For BTC chart, sync against ETH. For ETH chart, sync against BTC. Both must exceed minDeltaPct (0.032% on S3) in the same direction.

// The sync calculation
baseDeltaSync = (close - close[syncLen]) / close[syncLen] * 100.0
btcDeltaSync  = (btcSyncClose - btcSyncClose[syncLen]) / btcSyncClose[syncLen] * 100.0

// Both must agree in direction AND magnitude
upSync   = baseDeltaSync > minDeltaPct AND btcDeltaSync > minDeltaPct
downSync = baseDeltaSync < -minDeltaPct AND btcDeltaSync < -minDeltaPct

Gate 2 — Impulse (Velocity Filter)

The current 1-bar move must exceed impulseFactor × SMA(|1-bar moves|, impulseLen). On S3: current move > 0.75 × average absolute move over 10 bars. This ensures we enter only when the market is moving faster than its recent baseline — not during noise.

btcDelta1s  = (close - close[1]) / close[1] * 100.0
avgAbsDelta = ta.sma(math.abs(btcDelta1s), impulseLen)

upImpulse   = btcDelta1s > 0 AND btcDelta1s > impulseFactor * avgAbsDelta
downImpulse = btcDelta1s < 0 AND |btcDelta1s| > impulseFactor * avgAbsDelta

Exit Architecture — Where the Real Edge Lives

The entry is a filter. The exit is the strategy. Three layers work together:

Layer 1 — Hard Boundaries

Initial Stop-Loss: slPct = 0.033% below entry (S3). At 100x leverage, this is a 3.3% equity hit — tight enough that a single losing trade doesn't damage the account, but requires the sync+impulse signal to be right within one tick of noise.

Take-Profit Ceiling: tpPct = 0.94% above entry (S3). At 100x, this caps at 94% ROE per trade. Rarely hit because the trailing stop usually closes first — but prevents holding through a reversal that would give back a massive runner.

Layer 2 — Breakeven Trigger

When peak unrealized profit exceeds beTriggerPct (0.101% on S3), the stop-loss is moved to at least breakeven. From this point forward, the trade cannot lose money. This is the "risk elimination principle" from the original January 2025 papers, now automated.

Layer 3 — ATR-Adaptive Trailing with Profit Lock

Once breakeven is triggered, two mechanisms compete for the tightest stop:

Profit Lock Floor: lockFrac × (peak price − entry price). At lockFrac = 0.9, this locks 90% of the maximum excursion. If price rallied 0.5% from entry, the stop is at least 0.45% above entry.

ATR Wiggle Trail: wiggleK × ATR / price, clamped between minWiggle and maxWiggle (0.10% to 0.50%). This gives the trade room to breathe through normal noise, but tightens in low-vol environments and widens in high-vol.

The actual stop is max(lockFloor, wiggleTrail) for longs (or min for shorts). The lock floor ratchets up monotonically; the wiggle trail adapts to current volatility. Together they let winners run while guaranteeing locked profits.

// The trailing stop logic (simplified)
if beReached:
    floorStop = entry + lockFrac * (peakPrice - entry)   // locks 90% of peak
    trailLevel = close * (1.0 - wigglePct / 100.0)    // ATR-adaptive band
    dynStop = max(floorStop, trailLevel)                  // tightest wins

The Preset System

The S-family scales impulse sensitivity: S1 needs a strong, confirmed move; S4 trades almost any blip. The TF-family scales all parameters proportionally to timeframe — wider stops, higher thresholds, more room to breathe.

Performance Forensics — What the Numbers Really Say

Headline Metrics (S3, Feb 2 — Mar 2, 2026)

Where the Edge Actually Lives

The win rate is 36.77%. Nearly two-thirds of trades lose. And yet the strategy is massively profitable. This is the classic trend-following signature: many small losses, few large wins. The average winner (+0.24%) is 2.06× the average loser (−0.12%). At the given frequency, this produces $156.59 expected payoff per trade × 160 trades/day = roughly $25K/day expected.

The Asymmetric Holding Pattern

Average bars in winning trades: 5 bars (5 seconds). Average bars in losing trades: 3 bars (3 seconds). Winners live 67% longer than losers. The tight initial SL kills bad trades fast; the trailing stop + lock lets good trades breathe. This holding-time asymmetry is the mechanical source of the 2:1 R:R ratio.

Directional Balance

2,235 longs (796 wins = 35.6%) vs 2,244 shorts (851 wins = 37.9%). Near-perfect balance confirms the strategy is direction-agnostic — it's reading momentum, not bias. The slight short edge (+$431K vs +$270K) suggests BTC's Feb 2026 downtrend favored shorts, but both sides are profitable.

Honest Risk Assessment

V3.0 — Concrete Improvements

Based on analysis of all 10 strategy documents, 4 scripts, the PineScript, and the competition results, here are the improvements ranked by expected impact.

Priority 1 — Critical Fixes

Fix 1: Default to Strict Sync Feeds

The single most important change. Flip useStrictSyncFeeds to true by default. This ensures request.security() uses lookahead = barmerge.lookahead_off, preventing any possibility of future data leaking into the sync calculation. Yes, this will reduce backtest returns. That's the point — what remains is the real edge.

// v2.2 (current)
useStrictSyncFeeds = input.bool(false, ...)

// v3.0 (fix)
useStrictSyncFeeds = input.bool(true, ...)

Fix 2: Add Trade Cooldown

V2.2 has no cooldown between trades. After a loss, the strategy immediately re-enters if sync+impulse fire again — often into the same failing move. The v2.5 paper specified 90-second cooldowns after stopped rescues, and the v6.0 paper extends this to general trading. Adding even a modest cooldown of 5–10 bars (5–10 seconds on 1s) after any exit filters out whipsaw chains that produce consecutive small losses.

// v3.0: add cooldown logic
var int lastExitBar = 0
cooldownBars = input.int(8, "Cooldown bars after exit", minval=0)

if strategy.closedtrades > closedTradesCount
    lastExitBar := bar_index
    closedTradesCount := strategy.closedtrades

bool cooldownOK = (bar_index - lastExitBar) >= cooldownBars

// Add to signal conditions:
longSignal  := longSignal  and cooldownOK
shortSignal := shortSignal and cooldownOK

Fix 3: Widen Initial SL Slightly

At 0.033% SL on 100x, the stop is just 3.3 ticks from entry on BTC. On a 1-second bar, normal bid-ask bounce can trigger this. The data shows 62% of trades lose — many are likely stopped out within 1–2 bars by noise, not by actual adverse moves. Widening to 0.045–0.050% while keeping BE trigger the same would reduce the "noise stop" rate while still cutting genuine reversals quickly.

Priority 2 — VWAP Mean-Reversion Layer

This is the bridge between your PineScript momentum strategy and your manual competition edge. You're already trading VWAP reversals manually in The Leap with great success. Integrating a VWAP z-score into the Pine adds a structural awareness that momentum-only signals lack.

The Concept (from your v2.5 paper)

Compute 15-minute VWAP and its z-score. When |z| > 1.0, price is extended — and the probability of mean reversion increases. Use this to bias the entry direction: if z > 1.0, favor shorts (momentum exhaustion likely); if z < −1.0, favor longs. Between −0.5 and +0.5, trade both directions equally.

// v3.0: VWAP Tilt (adapted from v2.5 paper)
useVwapTilt = input.bool(false, "Use VWAP z-score tilt?")

// Get VWAP from higher TF
[vwapVal, vwapUpper, _] = ta.vwap(hlc3, timeframe.change("D"), 1)
vwapStdev = vwapUpper - vwapVal
vwapZ = vwapStdev != 0 ? (close - vwapVal) / vwapStdev : 0

// Tilt logic: don't fight extreme VWAP extension
if useVwapTilt
    if vwapZ >  1.5    // price far above VWAP → suppress longs
        longSignal := false
    if vwapZ < -1.5    // price far below VWAP → suppress shorts
        shortSignal := false

Priority 3 — Regime Detection

The v2.2 strategy trades the same parameters regardless of whether BTC is in a low-vol range or a high-vol trend day. Adding a simple ATR regime classifier allows dynamic parameter adjustment:

// ATR regime: compare current ATR to longer-term baseline
atrShort = ta.atr(10)
atrLong  = ta.sma(ta.atr(10), 300)  // 5-min baseline on 1s
atrRatio = atrShort / atrLong

// High vol: widen SL, raise BE trigger (let trades breathe)
// Low vol: tighten SL, lower thresholds (don't wait for moves that won't come)
bool highVol = atrRatio > 1.5
bool lowVol  = atrRatio < 0.6

if highVol
    slPct := slPct * 1.3         // more room
    beTriggerPct := beTriggerPct * 1.2
if lowVol
    impulseFactor := impulseFactor * 0.8  // lower bar for entry
    maxWiggle := maxWiggle * 0.7          // tighter trailing

Priority 4 — Volume Confirmation

Your BTC Volume Sync indicator already monitors 8 exchanges. Integrating even a simplified single-venue volume check (e.g., Binance BTC perp volume > 2σ above 300-bar mean) into the Pine would add a third confirmation gate. The v2.5 and v6.0 papers both specify volume sync as a core filter — the v2.2 Pine omits it.

// v3.0: Simple volume confirmation
useVolConfirm = input.bool(false, "Require Binance volume spike?")
binVol = request.security("BINANCE:BTCUSDT.P", timeframe.period, volume)
binVolAvg = ta.sma(binVol, 300)
binVolStd = ta.stdev(binVol, 300)
binVolSpike = binVol > binVolAvg + 2.0 * binVolStd

if useVolConfirm
    longSignal  := longSignal  and binVolSpike
    shortSignal := shortSignal and binVolSpike

Summary of V3.0 Changes

The BD Manual Method — Anti-Fragile Mean Reversion

This chapter documents the manual trading methodology that reached top 2% in TradingView's The Leap competition. As of the latest captured snapshot from the Feb.–Mar. 2026 Crypto Edition, the account sits at place 839 out of 49,466 traders with +31.35% realized profit (+$31,349.63). The method is the opposite of the Sync Momentum engine — and that contrast is the point. Where Sync Momentum cuts losers fast and catches momentum, the BD Manual Method does what every textbook says not to do: it adds to losing positions, never cuts small losses, and turns drawdowns into the biggest winners. It works because of structural constraints that make it anti-fragile rather than reckless.

The Leap — Live Competition Results

The Leap is TradingView's crypto paper trading competition. Feb.–Mar. 2026 Crypto Edition — 49,466 registered traders, $100,000 starting virtual capital, six assets available (BTC, ETH, SOL, LTC, XRP, DOGE vs USDC perpetuals on Coinbase). Top 500 win TradingView subscription prizes.

From March 8 to March 11, the account advanced from place 1,377 to 839 and from +$20.6K to +$31.35K. The key point is not just the profit — it is when it was made: while simultaneously building the trading system itself with AI. The book, the Sync Momentum strategy, and the ZigZag strategy were being created in parallel, and the manual trades were still producing competition-grade results. That is a real double job: trader and system architect at the same time.

Competition Snapshot — The Leap (Mar 11, 2026)

Live proof from TradingView's ongoing crypto competition. Click the image to enlarge it to full size.

TradingView The Leap — Crypto Edition snapshot: place 839 / 49,466, top 2%, +31.35%, +$31,349.63 realized profit.

Place

839

Top percentile

Top 2%

Profit %

+31.35%

Profit $

+$31.35K

Field size

49,466

Portfolio Structure — Single Pair vs Competition Mode

Core Method — Single Pair (Real Exchanges)

On MEXC and other exchanges that offer zero-fee trading, the method runs on a single trading pair — whichever zero-fee perpetual has good liquidity. Typically SOL or SUI from the larger caps, plus various smaller coins that MEXC offers at 0% fees. The zero-fee constraint is non-negotiable: the add-and-escape cycle generates many trades, and even small fees would eat the edge.

On exchanges that allow simultaneous long and short on the same contract, you hold both directions at once. When price moves either way, one side profits and the other triggers the add-and-escape cycle.

BTC and ETH are your sync dashboard, not your trading pairs. You watch BTC and ETH price action and volume to read market direction and confirm moves on your trading pair. When BTC and ETH volume spikes and direction aligns with your SOL trade, the move is real. When only your pair moves but BTC/ETH don't confirm, the move is more likely to revert. For manual visual trading, these two sync references are enough — you don't need to watch a dozen coins.

Whether this BTC+ETH sync approach stays sufficient when automated via scripts is an open question — the automated strategy may benefit from additional sync feeds (BNB, XRP) as the Pine v2.2 already supports. That's something to discover during the automation build.

Competition Variant — Multi-Asset (TradingView The Leap)

TradingView's paper trading does not allow simultaneous long and short on the same pair. This forces an adaptation: instead of hedging BTC-long vs BTC-short, you spread across 3 assets long and 3 assets short (from the available pool: BTC, ETH, SOL, LTC, XRP, DOGE vs USDC perpetuals on Coinbase).

This is a workaround, not the ideal setup. It introduces correlation risk — your long SOL and short DOGE don't perfectly offset each other the way long BTC and short BTC would. But it's good enough: crypto assets are highly correlated on short timeframes, so the natural hedge still holds approximately. And the add-and-escape cycle works the same way on each individual position regardless of how many assets are in play.

The Add-Escape-Ride Cycle

This is the mechanical heart of the method. When a position goes against you:

Step 1 — Initial Entry: Open a position with standard size (call it 1x). This is your base trade.

Step 2 — Price Moves Against You: Don't close. Don't panic. Wait.

Step 3 — Add Aggressively: When the move has extended enough (you read this from volume, structure, and liquidation levels), add significantly more size to the same position — could be 3x, 5x, 10x, even 20x the original, depending on conviction and how far price has moved. Your average entry price shifts close to the current price. The original position becomes a small fraction of total size. The multiplier is not fixed — it depends on how stretched the move is, how confident the reversal setup looks, and how much margin you have available.

Step 4 — The Micro-Pullback: Price never moves in a straight line. Even in a powerful trend, 1-minute candles produce constant small reversions — market makers filling orders, profit-taking, liquidation cascade exhaustion. When price pulls back toward your new average entry...

Step 5 — Partial Close: Take a large portion of the position off at breakeven or a tiny profit — could be 30%, 50%, 80%, whatever the situation demands. If the retrace looks weak and you want maximum safety, close most of it. If it looks like a real reversal building, keep more. The percentage is a judgment call every time, not a fixed rule. You've escaped the bulk of the risk. The remainder is now a low-cost position with a good entry.

Step 6 — The Runner: If price continues against you again, you repeat the cycle: add aggressively to the remaining portion, partial close on the next pullback. If price reverses in your favor, that runner catches the full move — and because you sized up on the add, even the runner portion can be substantial.

The Decision Point — Escape vs Ride

After the aggressive add, when price pulls back to your average entry, you face the critical decision:

Scenario A — Weak retrace: Price barely taps your entry and looks like it wants to continue against you. Wicks are thin, volume is building in the opposite direction. Close most of the added size immediately. Escape. Minimal damage.

Scenario B — Real reversal: Price pushes through your entry with conviction — fat candles, volume in your direction, liquidation levels getting swept on the other side. Hold the full added size. This is your home run. A "losing" trade just became your biggest winner because you're sitting on a massive position at a near-perfect entry right at the turning point.

Scenario C — Price goes further against you: Repeat the cycle. Add aggressively to the remaining runner, partial close on the next micro-pullback. The cost of each cycle is minimal because you're only cycling on the runner portion.

Two of three outcomes are breakeven or better. One is a home run. The losing trades literally set up the biggest wins — the market pays you more for being wrong first, because being wrong forced you into a huge position at the best possible price.

The Microstructure Guarantee

The entire method rests on one empirical fact: price never moves in a straight line on the 1-minute scale. Pull up any 1-minute chart, any asset, any day in history — even the craziest pump days — and you will find pullbacks every few candles.

This is not a hope. It's how market microstructure works:

Market makers need to fill orders on both sides of the book. After a directional push, they widen the spread and fill counter-direction orders, creating brief reversals.

Liquidation cascades exhaust themselves. When leveraged longs get liquidated, the forced selling creates a vacuum — no more sellers left — and price bounces.

Profit-taking from traders who caught the move creates selling into a pump and buying into a dump. This is constant.

Algorithmic rebalancing by bots maintaining delta-neutral positions creates counter-flow on every large move.

The only question is how many bars until the next pullback — and at 1-minute resolution, the answer is almost always "fewer than 10." This provides the exit window the method needs.

Chart Reading — What I See

Three primary signals inform the add-and-escape decisions:

1. Volume/Candle Ratio (Custom Indicator)

A custom overlay that measures the ratio between candle body size and volume bar size. When the candle is small but volume is big, it signals absorption: buyers and sellers are fighting hard but price isn't moving. This is institutional activity — someone is absorbing the flow. Absorption almost always precedes reversal. In 8Z terms: low information output (small candle) despite high input energy (volume) = compression that's about to decompress.

2. Liquidation Levels

Horizontal zones on the chart where leveraged positions will get force-closed, creating cascading order flow. Visible most precisely on the 1-minute timeframe. Market makers know where these clusters sit and will push price into them to harvest liquidity. Reading these tells you:

— Where is price being pulled toward? Liquidation clusters are magnets. Price tends to hunt them.

— When has the hunt completed? Once liquidations are swept, the fuel is gone and price reverses. This is your signal that the add-and-escape cycle is about to pay off.

3. VWAP Extension

When price extends far from the Volume Weighted Average Price, mean reversion probability increases. This is the structural layer that tells you whether the current move is "stretched" or "reasonable." Extreme VWAP extension + volume absorption = high-confidence reversal setup.

Chart Setup — The 3-Panel Workstation

Three panels running simultaneously on TradingView:

Left Panel — 1-second (BTCUSDT): Primary sync and volume reading. The BD Volume/Candle ratio indicator overlaid on price. Multi-platform volume visualization on the bottom. This is the microscope — seeing the real-time absorption patterns and sync signals.

Center Panel — 1-minute (BTCUSDC.P): Liquidation levels mapped most accurately at this timeframe. Horizontal zones show where leveraged positions cluster. The BD-Multi_indicators overlay (EMA/SAR/BB/SuperTrend/VWAP) provides structural context. This is the map — showing where price is being drawn to and where the inflection points are.

Right Panel — 5-minute (XRPUSDC.P or active trade): The actual trading chart for the current competition asset. Entry/exit management, SL/TP visualization, position tracking. Sync Momentum running as an indicator overlay for signal confirmation.

Automation Roadmap — The Goal

The ultimate objective is to automate this method fully, so it runs without looking at charts. This frees time for research, travel, and life — while the system earns. The path to automation requires encoding three elements that are currently discretionary:

1. Portfolio Manager: On real exchanges, maintain simultaneous long and short on the same pair. On competition platforms that restrict hedging, distribute across multiple assets — auto-select which to long and short based on relative strength, VWAP position, and trend structure. Rebalance when signals flip.

2. The Add-Escape Engine: Monitor each position. When a position exceeds a drawdown threshold, execute the aggressive add. Monitor for the micro-pullback. Partial close at breakeven — how much to close is a dynamic parameter based on reversal confidence. Keep the runner. Repeat if needed. The key parameters to calibrate: drawdown threshold for adding, add size multiplier (adaptive, not fixed), pullback size that triggers the partial close, close percentage (adaptive), and maximum number of add cycles per position.

3. The Decision Oracle: The hardest part to automate. At the pullback, decide: is this a weak retrace (escape) or a real reversal (ride)? This requires encoding the volume absorption signal, liquidation level awareness, and VWAP extension reading into quantifiable rules. Candidates:

— Volume/candle ratio exceeding a threshold = absorption detected
— Liquidation cluster within N% of current price swept on previous move = fuel exhausted
— VWAP z-score exceeding ±2.0 = extreme extension, favor reversal
— Multiple timeframe confluence: 1s sync agrees with 1m structure = high confidence

The four-tool ecosystem (v2.2+ strategy, v4 strategy, parameter sweep indicator, Python optimizer) provides the infrastructure. The Sync Momentum signals provide entry intelligence. The BD Manual Method provides the position management framework. Combining them creates a system that enters with momentum conviction and manages positions with anti-fragile mean reversion — the best of both worlds.

Risk Bible — The Non-Negotiables

Position Sizing Framework

From your v6.0 paper, adapted for the Pine strategy:

Failure Scenarios

Scenario 1: Correlation Breakdown

BTC rallies while ETH dumps. Sync never fires. The strategy goes flat — no trades. This is safe. The danger is if correlation breaks after entry — you're long because BTC+ETH agreed, but then ETH reverses while BTC continues. The tight SL handles this: worst case is one stop-loss hit.

Scenario 2: Flash Crash / Gap

On 1s bars, gaps are rare but do occur (exchange maintenance, API hiccup). The micro gap filter (v2.2 Section 10) should be ON for live trading. A gap through your SL means slippage beyond the intended 0.033% — at 100x, a 0.5% gap = 50% equity loss on that trade. This is why the v6.0 paper specifies server-side MARK stops where available.

Scenario 3: Zero-Fee Policy Change

MEXC removes or reduces the 0% maker fee promotion. At even 0.01% per side (1 bps), the strategy loses 2 bps per round trip × 160 trades/day = 320 bps daily overhead. This likely kills the 1s strategy entirely. Mitigation: reduce trade frequency (use S1 or S6), increase minimum R:R, or migrate to another zero-fee venue.

Scenario 4: Extended Drawdown

The negative Sharpe means prolonged losing streaks are expected. The backtest shows the first week (Feb 2–9) was essentially flat — if you started trading day 1 and saw no returns for 7 days, would you keep running? Mental preparation for 100+ consecutive losses (at 36.77% win rate, 10+ loss streaks happen daily) is essential.

Hygiene Gates (from v2.5/v6.0)

The v2.2 Pine lacks the hygiene state machine from your papers. For live execution, implement these as bot-side checks:

Also enforce: ≤12 orders/30s, ≤15 orders/min, ≤3 orders in any 2s window, 100–300ms random jitter between submits. These are from your v2.5 pacing specification and prevent exchange-side detection or rate-limiting.

Toolbox — Scripts, Indicators & Parameters

Script Inventory

Indicator Stack (Recommended Chart Layout)

Layer 1 — Price Action: BD-Multi_indicators with EMA 5/13/50/200/800, dual SAR, SuperTrend, VWAP, Bollinger Bands, ATR stops. This is your structural context.

Layer 2 — Volume Intelligence: BTC Volume Sync showing Council of 8 scoring. Look for SD ≥ 5x and MT ≥ 5x as high-conviction signals.

Layer 3 — Strategy Signals: SyncMomentum Unified v1.2.6 (Pine v6, SM| config protocol) or BD ZigZag Reversion v2.5 (Pine v6, BDZv2| config protocol) with signal shapes and dynamic SL/TP lines visible. Use as overlay confirmation for manual trading or as direct auto-execution. For live paper trading, the HTML paper traders (SyncMomentum_PaperTrader.html, ZigZag_PaperTrader.html) connect directly to exchange WebSockets.

S3 Parameter Quick Reference

Roadmap — Where This Goes Next

Immediate (This Week)

1. Enable useStrictSyncFeeds = true and re-run the S3 backtest. Document the delta. This is the single most important data point for knowing whether the edge survives without lookahead.

2. Enable useLatencySim = true with execDelayBars = 1 and re-run. This simulates 1-second execution delay. Combined with strict feeds, this gives you the "realistic worst case" backtest.

3. Implement the cooldown patch (8-bar cooldown after any exit). Re-run.

Short-Term (Next 2 Weeks)

4. Build v3.0 with all critical fixes + VWAP tilt + volume confirmation as optional modules. Test each module independently and in combination.

5. Run the Python backtester (1m_back_testing.py) against real MEXC data with the sensitivity grid (latency 0/50/150/300ms, slippage 0/2/5/10/20bps, spread 0/1/3/5bps). This gives you the "execution-realistic" view that Pine cannot provide.

6. If paper trading automation is allowed in The Leap, deploy TF1 or TF2 preset on BTCUSDT paper trading as a supplement to your manual sessions. Monitor for 3 days before trusting it.

Medium-Term (Next Month)

7. Port the strategy to the hedge_farm_optimizer framework for multi-asset optimization. Test on ETH, SOL, and other high-correlation pairs.

8. Implement the full hygiene state machine (OPERATE/HARVEST-ONLY/PAUSE) as a separate Pine indicator that overlays the strategy, providing visual state feedback.

9. Develop the "rescue protocol" from v2.5/v6.0 as a separate Pine module that can be composed with the core strategy for stuck positions.

Long-Term

10. Full bot implementation splitting Pine signals (signal generation only) from bot execution (hygiene gates, pacing, MARK stops, heartbeat). This is the Phase B → Phase C automation path from your original HF_Scalping paper.

The Vision — Multi-Asset MDL Command Center BUILT

11. Pine Indicator: MDL/DCC Monitor Table v1.0. COMPLETED — A dedicated Pine v6 indicator (not strategy) that occupies one-third of a TradingView split-screen layout. Uses request.security() to pull data from 24 configurable assets simultaneously across 6 asset classes: crypto (BTC, ETH, SOL, SUI, DOGE + 3 configurable), stocks (SPY, QQQ + 4 configurable), bonds (FESB1!, FBON1!, TLT), volatility (FVS1!, VIX), commodities (XAUUSD, CL1!, SI1!), and forex (EURUSD, DXY, GBPUSD). For each asset, it computes and displays in real-time:

• MDL Regime — which of the 4+ generators wins (TREND/REVERT/MOMENTUM/RANGE) and direction
• DCC State — EXPLOIT/BALANCED/EXPLORE with coupling parameter u
• Arena Mode — which Smart Invert mode is winning (NORMAL/SYNC_INV/IMP_INV/FULL_INV/ASYM) and the virtual PnL scores
• Signal Status — green/red/gray for whether the strategy would currently enter long, short, or stay flat
• Rolling PnL — virtual performance of the strategy on that asset over the last N bars
• Heat Column — color-coded from deep green (strong profitable fit) through gray (neutral) to deep red (strong inverse fit = profitable if inverted)

The table effectively makes the MDL arena visible across the entire market at once. You watch it, spot which assets are "hot" (strong regime, EXPLOIT mode, high virtual PnL), manually switch to that asset's chart in another split window, and trade it. The monitor is passive intelligence — it tells you where and when the structure is strongest, you decide whether to act.

Pine v6 allows up to 40 request.security() calls per script. With 30 assets, that's 30 calls for close prices, leaving 10 for additional data (volume, VWAP). Each asset gets one row in the table. The indicator is lightweight — no strategy entries or exits, just computation and display.

12. Python Combinatorial Optimizer (API-side). A Python script that interfaces with TradingView via webhooks, alerts, or the Pine strategy tester API. It runs the full MDL arena at scale: every combination of preset × asset × timeframe × arena_mode. With 16 presets, 30 assets, 6 timeframes, and 5 arena modes, that's 14,400 combinations. DCC governs the search budget — it doesn't test all 14,400 blindly, but starts with the most promising (high-volume liquid pairs on medium timeframes) and expands or contracts based on early results, exactly like 8Z-rp's TSP solver.

The Python optimizer outputs a ranked leaderboard: "FESB1! on 1m with S5-Fast-Scalper in NORMAL mode = +6,738% PnL" at the top, "FBON1! on 1m with S3-Aggressive in NORMAL mode = -37,073% → FULL_INV mode = +28,000% projected" below. This leaderboard is the meta-MDL: across all combinations, which (asset, timeframe, preset, mode) tuple produces the shortest description of profitable trading?

13. The Ultimate Goal: A system where the Pine monitor table shows real-time MDL/DCC state across 30 assets, the Python optimizer runs nightly to update the leaderboard, and you — the human trader — use both to select which asset to trade, on which timeframe, with which preset. The AI Dream Team (Claude, GPT, Gemini, Grok) continuously refines the MDL generators, DCC calibration, and arena modes based on live performance data. The system gets smarter as it runs.

The 8Z Connection — Compression Meets Markets

This chapter is for you, Bojan — the thread that connects your 30-year research program to this trading system.

The 8Z compression framework rests on a principle: data that contains mathematical structure can be compressed beyond entropy-only limits. The MDL (Minimum Description Length) framework serves as judge — if a generator (cellular automaton, L-system, logistic map) produces a shorter description than the raw data, that generator has found real structure.

The Sync Momentum strategy applies the same principle to financial time series, even if the implementation is different. The "sync" signal is a cross-asset compression detector: when BTC and ETH move together with magnitude > threshold, you've detected a structure (coordinated institutional flow) that compresses the uncertainty of the next few seconds. The impulse filter adds a velocity constraint — the structure must be actively expressing, not historical.

The connection deepens when you consider what the BTC Volume Sync indicator does: it's checking whether the volume pattern across 8 exchanges simultaneously exceeds a statistical threshold. This is essentially a multi-channel MDL test: is there a common generator (a single liquidity event) that explains the coordinated volume spikes better than independent noise on each exchange?

Your BD_portfolio.html identified "Financial Time Series" as one of six 8Z transfer domains. The DNA scanner finds cellular automata in genomic sequences with Z-scores of 28–74. The sync momentum strategy finds coordinated flow patterns in price data with a different method but the same philosophical foundation: structure that compresses better than noise is real and exploitable.

The "Invisible 90%" principle from your DNA work maps directly: most of the time, crypto markets are noise (the strategy is flat). But when the mathematical generators (institutional order flow, liquidation cascades, momentum propagation) activate, the structure becomes visible through the sync+impulse filter. The strategy captures the structured 10% and ignores the noisy 90%.

The Fractal Dimension — Mandelbrot Meets 8Z

In 1963, Benoît Mandelbrot analyzed cotton price variations and discovered two properties that shattered classical finance: price movements follow power laws (not Gaussian distributions), and price charts exhibit self-similarity across timeframes — a daily chart is statistically indistinguishable from a monthly chart when the axes are unlabeled. He called this fractal geometry applied to markets, and spent the next four decades developing the multifractal model of financial returns.

The connection to 8Z is direct. Mandelbrot's self-similarity means that the same mathematical generators produce swing structures at every scale — a ZigZag on 1m, 5m, 15m, and 1h reveals legs with the same statistical properties, just at different amplitudes. This is precisely what the 8Z framework expects: data that contains mathematical structure can be compressed beyond entropy limits. If the same generator operates at multiple scales, detecting it at one scale gives information about all scales — that's compression across timeframes.

The empirical proof from our own system is the March 5 finding: the same strategy on the same day produced +448% on 15m, +100% on 1s, and -53.7% on 30m. The strategy didn't change — the resonance between strategy parameters and fractal scale changed. Some scales are coherent with the generator; others aren't. The MDL framework naturally handles this: the generator that produces the shortest description at one scale may lose at another, and DCC should detect this cross-scale incoherence. Chapter 14 develops this into the operational Fractal Coherence framework.

The Smart Invert Discovery (March 2026)

A critical breakthrough emerged during cross-asset testing. When running the v2.2 strategy across different asset classes, the results revealed a profound pattern:

• BTCUSDT.P on 1m: +85% PnL (4,004 trades) — momentum-following works
• FESB1! (EURO STOXX Banks) on 1m: +6,738% PnL (2,732 trades) — momentum-following works even better
• FVS1! (VSTOXX Futures) on 1m: -278,433% PnL (3,355 trades) — momentum-following catastrophically fails
• FBON1! (Euro-BONO Fixed Income) on 1m: -37,073% PnL (197 trades) — momentum-following fails

The insight: a reliable loser IS a reliable signal — just inverted. If the strategy consistently loses on VSTOXX, the signals are correctly identifying market structure but interpreting it backwards. VSTOXX is mean-reverting by nature — momentum signals on a mean-reverting asset systematically point the wrong direction.

This maps directly to 8Z-Audio's stereo encoding modes. Sometimes mid/side representation compresses better than left/right. Sometimes inverting the channel polarity produces a shorter description. The encoder doesn't know in advance — it tests both and picks the winner via MDL. Same principle: sometimes inverting the signal polarity produces better trading results, and MDL should pick the winner.

But the inversion isn't binary. Not all components should invert together. In the Smart Invert system, five modes compete:

Mode 0 (NORMAL) — momentum-following, as designed. Works on trending assets (crypto, equity indices).
Mode 1 (SYNC_INV) — fade the correlation signal, follow the impulse. Catches divergence plays.
Mode 2 (IMPULSE_INV) — follow the correlation, fade the velocity. Catches mean-reversion within a trend.
Mode 3 (FULL_INV) — full contrarian. Works on strongly mean-reverting assets (VIX, bonds).
Mode 4 (ASYMMETRIC) — normal entry direction, but swap the SL/TP ratio. For assets where the trend direction is correct but the exit architecture needs to be reversed (wide stops, tight targets for mean-reversion profit capture).

This is the parameter arena — each mode is a "generator" competing in the MDL arena for which one produces the most profitable description of the market. And crucially, the arena includes DCC governance: if the winning mode flips chaotically, DCC reduces position size (the arena's search budget is too noisy to trust).

The Full MDL Trading Architecture

With the Smart Invert discovery, the complete 8Z → Trading transfer becomes clear:

Level 1 — Per-Bar MDL: 4 generators (TREND, REVERSION, MOMENTUM, RANGE) compete each bar to determine the market regime. Winner = current structure. DCC monitors regime-change complexity.
Level 2 — Per-Mode Arena: 5 signal modes (NORMAL through ASYM) compete over a rolling window to determine the optimal signal polarity. Winner = how to trade this asset. DCC monitors mode-change complexity.
Level 3 — Per-Asset Meta-Arena (future): All (asset × timeframe × preset × mode) combinations compete to determine where to trade. A Python-side optimizer ranks the full leaderboard. DCC governs search budget across combinations.

This is nested MDL with nested DCC — the same architecture as the 8Z-OS, where frame-level MDL (which predictor?) is governed by frame-level DCC, which is governed by segment-level DCC, which is governed by file-level decisions. The trading system has the same fractal structure: bar-level → mode-level → asset-level, each with its own MDL arena and DCC budget controller.

The Multi-Asset Monitor Vision

The practical implementation: a TradingView split-screen where one-third of the screen is a Pine indicator showing a 30-row monitoring table. Each row is an asset — crypto majors, high-risk altcoins, stock indices, bonds, volatility, commodities, forex. Each row shows: MDL regime, DCC state, arena mode, virtual PnL, signal status, and a heat-map color indicating how well the strategy fits that asset right now.

Behind the scenes, a Python optimizer runs nightly across 14,400+ combinations (16 presets × 30 assets × 6 timeframes × 5 modes), outputting a ranked leaderboard. DCC governs the search: it starts with promising combinations and expands or contracts based on results — exactly like 8Z-rp's TSP solver that uses DCC to decide how many candidate solutions to test per iteration.

The human trader — you — sits at the center, watching the monitor table, informed by the leaderboard, making the final decision. The system finds the structure. The human decides whether to act. This is the AIM³ vision: human judgment amplified by mathematical structure detection.

The Monitor — Multi-Asset Command Center

The MDL/DCC Monitor v1.0 is a passive intelligence indicator — it does not trade. It computes the full MDL regime detection, DCC coupling, signal direction, and heat scoring for up to 24 assets simultaneously, displaying results in a real-time color-coded table. This is Tier 2 of the three-tier system architecture.

Architecture

The Monitor uses one request.security() call per asset, returning a 7-element tuple computed in the target symbol's context. This means the MDL generators, DCC coupling, and signal computations all run natively on each asset's price data — no approximations, no cross-contamination.

// Master computation function — runs in target symbol context
f_heat(src, window, penalty, histLen, seizureT, noiseT, impLen, impFact, heatWin) =>
    [regime, dir, minCost] = f_mdl(src, window, penalty)     // 4 generators compete
    [dccU, chRate]         = f_dcc(regime, histLen, ...)     // regime-change complexity
    [sigDir, strength]     = f_signal(src, impLen, impFact) // impulse direction
    heat = momReturn × |strength| × dccU / 10              // composite score
    [float(regime), dir, dccU, sigDir, strength, heat, momReturn]

// One call per asset — 24 assets = 24 of 40 allowed calls
[c1_reg, c1_dir, c1_u, c1_sig, c1_str, c1_heat, c1_mom] = request.security("BINANCE:BTCUSDT.P", ...)
[c2_reg, c2_dir, c2_u, c2_sig, c2_str, c2_heat, c2_mom] = request.security("BINANCE:ETHUSDT.P", ...)
// ... 22 more assets

Resource budget: Pine v6 allows 40 request.security() calls. The Monitor uses 24 (one per asset), leaving 16 for potential future expansion — secondary timeframe checks, volume data, or VWAP computations.

Column Reference

Trading Workflow

The Monitor transforms multi-asset trading from a guessing game into a structured scanning process:

Step 1 — Scan. Open TradingView with three panes. Load the Monitor on the left pane (any chart — it fetches all assets via request.security()). The table populates with real-time data across all 24 assets.

Step 2 — Identify. Look for the convergence pattern: asset shows EXPLOIT DCC state + high coupling (u > 0.7) + directional MDL regime (TREND or MOMENTUM, not RANGE) + active signal (LONG or SHORT) + strong heat score (|score| > 0.3). This means MDL has found stable structure, DCC confirms it's exploitable, and momentum is aligned.

Step 3 — Switch. Navigate the center pane to that asset. Load Sync Momentum v3.0 strategy. Verify the strategy's own dashboard confirms the regime and DCC state. Check the chart visually for obvious structure (trend lines, support/resistance, clean price action).

Step 4 — Execute. Let the strategy handle entries and exits. Or, if in manual/competition mode, use the Monitor's intelligence to time your manual entries — enter when the Monitor shows convergence, avoid when it shows EXPLORE/RANGE.

Step 5 — Rotate. When the Monitor shows the current asset's heat fading (EXPLOIT → BALANCED → EXPLORE), scan for the next hot asset. The market rotates; the Monitor tracks the rotation in real-time.

Default Asset Selection

The Monitor ships with 24 configurable slots across 6 asset classes, with a curated default set chosen for:

Crypto (8 slots): BTC, ETH, SOL, SUI, DOGE enabled by default. PEPE, WIF, BONK available for meme coin monitoring. All use Binance perpetual futures feeds for consistency with the main strategy.

Stocks (6 slots): SPY and QQQ enabled — these are the sync leaders for the stock preset family. IWM, DIA, NVDA, AAPL available for individual stock tracking.

Bonds (3 slots): FESB1! (EURO STOXX Banks Futures) and FBON1! (Euro-BONO Fixed Income) enabled — these showed the strongest cross-asset results in v2.2 testing (+6,738% and -37,073% respectively, the latter being a prime Smart Invert candidate). TLT available for US Treasury bond exposure.

Volatility (2 slots): FVS1! (VSTOXX Futures) enabled — the original "reliable loser" that inspired the Smart Invert discovery (-278,000% normal → huge profit inverted). VIX available as alternative.

Commodities (3 slots): XAUUSD (Gold) enabled as a key risk/safe-haven indicator. Oil (CL1!) and Silver (SI1!) available.

Forex (3 slots): EURUSD and DXY enabled — DXY is the universal forex sync leader, EURUSD its inverse. GBPUSD available for additional coverage.

Every slot's symbol is configurable via input.symbol(), so you can swap in any TradingView-supported asset. The toggle next to each asset controls whether it appears in the table without wasting a request.security() call on disabled assets.

Compact vs Full Mode

Full mode (default): 8 columns — ASSET, MDL, DCC, u, SIGNAL, MOM%, HEAT bar, SCORE. Best for wider screens where the Monitor gets a full third of the display.

Compact mode: 5 columns — ASSET, MDL, DCC, SIGNAL, HEAT. Drops the numeric columns for narrower screens. All essential information preserved; you just lose the precise numbers.

Summary Row

The bottom of the table shows a summary: how many assets are active, how many are in EXPLOIT mode, and the average heat score across all monitored assets. When EXPLOIT count is high and average heat is positive, the market as a whole has exploitable structure — it's a "risk-on" environment for the system. When EXPLOIT count is low and average heat is near zero, the system says "wait."

BD ZigZag Reversion — The Mean Reversion Engine

While Sync Momentum catches directional impulses, the ZigZag Reversion strategy exploits the opposite phenomenon: price always reverts within a swing structure. Built on top of the BD Manual Method (Chapter 5), this strategy automates the add-and-escape cycle using structural detectors to identify swing extremes and mean reversion targets.

Core Concept — Extension Ratio Trading

Every detector produces swings with measurable amplitude. The average leg amplitude (pAA) across the last N legs gives us a ruler. The extension ratio (ER) measures how far price has extended beyond the last swing point, normalized by this ruler. When ER exceeds the entry threshold (ET), the current leg has overextended and is likely to revert.

The entry direction is always against the current extension: if price has extended upward (ER positive), we enter short. If downward, we enter long. The take profit is a fraction of the average leg — we don't try to catch the full reversal, just a reliable slice.

The Multi-Detector Arena (18 Detectors)

Five detector families, each tested on Regular and Heikin Ashi candles, with multiple deviation settings:

Each of the 18 detectors can be used as Primary (entry signal) or Confirmation (requires agreement before entry). The optimizer tests all 36 pair combinations plus solo mode.

Critical Fix: High/Low vs Close-Only Detection (v2.3)

Discovery: All detectors were using close prices for swing extremes, missing wick tips entirely. ZigZag lines cut through candle bodies instead of connecting to highs and lows.

Five fixes applied: Initial state uses high/low, confirmation state uses high/low, extension calculation uses the correct extreme for the direction (high when measuring up-extension from a low, low when measuring down), confirmation extension follows the same logic, and the developing leg line points to the tracked extreme.

DCC Regime Detection from ZigZag Data

Leg amplitude consistency reveals regime stability. We compute the coefficient of variation (CV) of the last 8 leg amplitudes: cv = std(legs) / mean(legs), then u = 1 - cv. When u is near 1, legs are consistent (STABLE regime — exploit). When u is near 0, legs are erratic (CHAOTIC — be cautious).

Three DCC modes tested in the optimizer: dccE (entry adjustment: stable = tighter threshold, chaos = wider), dccS (sizing: stable = full, chaos = half), dccES (both). The optimizer consistently shows dccES outperforming noDCC on average across all timeframes and symbols.

Adding Methods — The Position Growth Problem

When price moves against entry, we add to shift the average entry price. The adding method determines how fast the position grows. This is the critical variable for survival.

The $1K Path — Accessible Trading

Not everyone has $10,000 to start trading. But this strategy works with $1,000 — and the results are remarkable.

$1,000 starting capital. 50× leverage. Fibonacci spacing. 34 days. Result: $5,053.37 — a 405% return with 100% win rate and zero drawdown. Fees paid: $24.61 — just 0.6% of the $4,053 profit. The strategy doesn't need a large account; it needs the right parameters.

The key insight is base size. With a $0.1 base and Double Total sizing, all 10 adds are useful:

This is the most accessible version of the strategy: anyone with $1,000 and a browser can run it. No installs, no API keys, no coding. Open the HTML file, set the parameters from the preset, hit Start, walk away. Built in 2 days through human × AI collaboration.

The $2K→$10K Strategy — Trading for the Masses

The optimal default configuration: $2,000 starting capital, $0.20 base trade, 50× leverage, Fibonacci add spacing. Result: $10,088 in 34 days — a 5× return with 100% win rate and zero drawdown.

Why $2,000? Because it's the sweet spot between accessibility and position flexibility. The $0.20 base with DblTot sizing reaches $1,000 max position (50% cap) at add 10 — every single add is useful across the full Fibonacci distance. Fees: $49.34 total — under 0.6% of profit.

The strategy works because mean reversion at 30-minute resolution is a structural market property — price oscillates around moving averages, and that won't stop. Fibonacci spacing ensures survival through adverse moves, and small base size ensures all 10 adds contribute meaningfully.

Extreme Configurations — See PnL Records

The extreme configurations that push the system to its limits — $2K→$255K (no fees, 96×) and $2K→$221K (MEXC fees, 500×) — are documented with full screenshots and parameter tables in the ★ PnL Records section at the top of this book. Those results represent the current champion configurations as of March 7, 2026.

Version History

Dream Team — Position Management Science

The AI Dream Team (Claude, GPT, Gemini, Grok) conducted systematic experiments on 21 months of BTC data to answer: what keeps a $1,000 wallet alive while maximizing profit? Every combination of initial sizing, adding method, escape logic, and compounding was tested against real market data spanning bull runs, crashes, and choppy sideways periods.

The Escape Survival Cliff

The BD Manual Method's core insight: when position is oversized and price gives any micro-profit, close the bulk and keep a small runner. But how much to close? Testing every percentage from 50% to 95% revealed a hard survival cliff:

The transition from 80% to 90% is not gradual — it is a cliff. Below 80%, the runner is large enough that subsequent adverse moves can still liquidate. At 90%+, the runner is small enough that even extreme moves cannot kill the account before the next escape opportunity.

Progressive Escape — MDL-Optimal Compression

Rather than a fixed escape percentage, progressive escape scales the close fraction with position complexity: start at 70%, add 10% per additional add cycle. So 1 add = 70%, 2 adds = 80%, 3 adds = 90%, 4+ adds = 98%. This naturally compresses harder as the position bloats — the MDL principle applied to position management.

On BTC 5m, progressive escape (prog70+10) achieved the best PnL/DD ratio of 8.49, outperforming fixed 90% (ratio 2.40) by 3.5x. The key insight: early escapes (1-2 adds) can afford to keep more runner because the position is still manageable. Late escapes (3+ adds) must be aggressive because the position is dangerously large.

Initial Sizing for Small Wallets

For a $1,000 wallet at 100x leverage, the base size determines survival:

The critical insight: max position cap of 50% ($500) at 100x leverage means $50,000 notional. A 2% BTC move = $1,000 = entire wallet gone. For $1K wallets, use 25% max position cap.

Compounding — Scaling Position with Wallet Growth

As the wallet grows from $1K to $2K, the base size should grow too. But how fast? Five compounding methods tested:

Sqrt compounding is the recommended default. It is naturally anti-fragile: growth decelerates as risk increases. At $10K equity, base is only $3.16 (not $10), keeping position growth conservative even as the account scales.

Recommended Profiles

Start with SAFE. Graduate to BALANCED after proving the strategy on your specific symbol/timeframe. Graduate to AGGRESSIVE only after $5K+ equity proven. Never use MAX PnL unless you can afford to lose the entire wallet.

Known Bugs & Battle Scars — What We Learned the Hard Way

Every bug below was discovered in production and cost real time to diagnose. Document them so we never repeat them.

Bug #1: The Escape-Add Infinite Loop

Symptom: ETH 3m showing +156,846% ($15.6 million from $10K). 5,209 trades on 30K bars = 1 escape cycle every 6 bars. Clearly impossible.

Cause: After escape closes 90% of position, the 10% runner immediately meets the add threshold on the next bar (extension ratio still high). Add fires, rebuilding position to full size. Next bar, escape fires again on the rebuilt position. Each cycle books micro-profit. This creates a perpetual profit machine that does not exist in reality.

Fix: Cooldown timers — escape cannot fire for 10 bars after last escape, adds cannot fire for 5 bars after last escape. Both Pine and optimizer must enforce identical cooldowns.

Status (v2.4): Cooldown implemented but results still inflated. The fundamental issue is that even with cooldowns, the escape-add cycle generates more trade events than a real trader would execute. The PnL/DD ratio ranking partially compensates (inflated PnL comes with inflated DD), but absolute numbers should not be trusted for escape-enabled combos with more than ~500 trades per 30K bars.

Bug #2: strategy.openprofit Desync

Symptom: v2.4 showing 23 losses with 71% win rate. Strategy designed for 100% WR.

Cause: Exit logic was changed from tPnl > 0 (our tracked profit) to strategy.openprofit > 0 (Pine's internal profit). These diverge because Pine tracks fills at different prices than our computed average entry (especially after adds). When Pine says "not profitable" but our math says "profitable," the exit does not fire, the position is held too long, and eventually closes at a real loss.

Fix: Always use our tracked tPnl for exit decisions, never strategy.openprofit. Additionally, the exit conditions must use separate if blocks (not else if chains) to match v2.3 behavior where both TP and swing close can evaluate independently.

Bug #3: Escape ON by Default

Symptom: v2.4 showing -29% where v2.3 showed +34.8% on the same chart.

Cause: Escape was enabled by default. With 1,920 escapes on a chart that should have had ~158 trades, the strategy was chopping every position into tiny pieces, each incurring fill slippage, generating 866 losing trades.

Fix: All new features (escape, progressive escape, compounding) must default to OFF. Users must explicitly enable them after testing. The golden rule: v2.4 with all new features OFF must produce identical results to v2.3.

Lesson: Timeframe Is a First-Class Parameter

Same strategy, same day, same settings:

This is not a bug. Different timeframes create different swing structures. The ZigZag on 1m sees micro-swings that the 15m chart smooths over. The optimizer MUST test across timeframes systematically, and the best config for one timeframe may be terrible for another. Never assume a config transfers across TFs without testing.

Fractal Coherence — When All Scales Agree

This chapter documents the breakthrough that unifies several threads: the 8Z MDL/DCC framework (Chapter 9), Mandelbrot's fractal geometry of markets, the ZigZag reversion engine (Chapter 11), and the empirical discovery that timeframe is a first-class parameter (Chapter 13). The result is a single concept — Fractal Coherence — that serves as a theoretically grounded DCC signal with proven empirical results.

The MM-MDL Thesis — Who Profits and Why

Reframing MDL for markets: if Minimum Description Length finds the shortest description of data, what is the shortest description of who profits in trading? The answer compresses to one sentence: market makers extract; everyone else donates. The MM's system is the compressor — it takes the complexity of human behavior (fear, greed, herd instinct, liquidation cascades) and compresses it into profit.

Human behavior in trading doesn't change much through time. MMs exploit this with powerful systems that see the same patterns retail traders create, decade after decade. This behavioral consistency reflects most simply in the legs of a ZigZag — the swing structure that emerges when you connect price pivots at any scale.

The key insight: ZigZag legs are fractal. Zoom from 1-second to 1-minute to 1-hour — the swing structures look statistically identical, just at different amplitudes. This is exactly what Mandelbrot proved with cotton prices in 1963 and what our own data confirms daily. The same generator (human behavioral patterns + MM exploitation of those patterns) operates at every scale. If you can detect when that generator is coherent across scales, you've identified the moments when the market's fractal structure is most predictable — and most profitable.

The connection to DNA research is direct. In the 8Z DNA Scanner, cellular automata rules produce Z-scores of 28–74 because the biological generator embeds structure at specific scales. Not every resolution reveals the signal — you must find where the generator is active. Similarly, a trading strategy resonates at some timeframes (+448% on 15m) and fails at others (-53.7% on 30m) because the fractal generator's coherence varies by scale. The task is to detect coherence in real-time and trade only when it's present.

Mandelbrot's Legacy — From Cotton to Crypto

Benoît Mandelbrot's work on financial markets established three properties that classical finance ignores:

1. Self-Similarity. Price charts exhibit statistical self-similarity across timeframes. A daily chart cannot be distinguished from a monthly chart when axes are unlabeled. Our ZigZag data confirms this: average leg amplitudes at different timeframes follow consistent ratios.

2. Fat Tails. Price movements follow power laws, not Gaussian distributions. Extreme moves happen orders of magnitude more often than the bell curve predicts. This is why MMs focus on liquidation zones — they know where the extreme moves will cascade.

3. Volatility Clustering. Large moves tend to be followed by more large moves. The ZigZag's Smart Leg Average (SLA) with outlier capping is, in effect, a crude fractal dimension estimator — it identifies when a leg belongs to a different volatility regime and caps its influence on the average.

Bill Williams introduced his "Fractal" indicator in 1995 — a simple 5-bar high/low reversal pattern. It identifies swing points but doesn't measure fractal properties. Our system goes further: we run ZigZag on multiple timeframes simultaneously and measure whether the fractal structure is coherent — whether the same generator is active at every scale.

The Hurst exponent (H) is the mathematical measure of self-similarity: H > 0.5 means trending (persistent), H < 0.5 means mean-reverting, H = 0.5 means random walk. A true fractal coherence measure would compute H at each scale and check whether they agree. Our simpler direction consensus captures the same information empirically — and it's computable in real-time on every tick.

MTF Direction Consensus — The Proven Signal

The BD_mtf_confluence.py v2.0 implements and proves the first layer of fractal coherence. The algorithm:

Step 1 — Parallel ZigZag. From 1-minute source data, resample to a Fibonacci timeframe ladder: 3m, 5m, 8m, 13m, 21m, 34m, 55m, 89m, 144m. Run ZigZag detection (same deviation parameter) on each timeframe independently.

Step 2 — Direction Array. For each timeframe, build a per-bar direction array: after a LOW swing, direction is UP (+1); after a HIGH swing, direction is DOWN (−1). This captures which way the ZigZag "leg" is currently traveling at each scale.

Step 3 — Consensus Score. At each bar on the trading timeframe, count how many monitor timeframes have the SAME direction as the trading TF. Score = agreeing / total. A score of 1.0 means all scales point the same way; 0.0 means complete disagreement.

Step 4 — Size Multiplier. Map the consensus score to a position size multiplier: mult = base + score × (maxMult − base). High consensus = larger position (exploit). Low consensus = base size only (explore). This is a DCC-style coupling directly from fractal coherence.

Empirical Results — 65 Days BTCUSDT (Jan–Mar 2026)

The consensus distribution itself is informative: 25.2% of bars have 9/9 agreement, meaning a quarter of the time ALL Fibonacci timeframes point the same way. That's when the fractal generator is fully coherent. The other 75% shows varying degrees of cross-scale disagreement — different generators dominating different scales.

The simplified 4-TF version (5m, 15m, 30m, 1h) showed the same pattern: 4/4 agreement produced $73.53 avg per trade, while 0/4 produced $0.01. The improvement was even larger at +70.5% vs baseline. Fewer monitor TFs means higher consensus thresholds are more common (53.7% of bars had 4/4 agreement), which concentrates sizing even more aggressively on the best moments.

Leg Amplitude Nesting — The Missing Layer

Direction consensus answers: "are the generators pointing the same way?" Leg amplitude nesting answers a different question: "are the generators producing self-similar structure?" These are independent signals that capture different aspects of fractal coherence.

The concept: at each monitor timeframe, compute avgLeg (average ZigZag leg amplitude). Then check the ratio between consecutive scales:

// Leg amplitude nesting check
ratio_5_13   = avgLeg_13m  / avgLeg_5m
ratio_13_34  = avgLeg_34m  / avgLeg_13m
ratio_34_89  = avgLeg_89m  / avgLeg_34m
ratio_89_233 = avgLeg_233m / avgLeg_89m

// Nesting coefficient of variation — low = self-similar, high = broken
nesting_cv  = stddev(ratios) / mean(ratios)
FC_nesting  = 1.0 - clamp(nesting_cv, 0, 1)

When ratios are consistent across scales (nesting CV is low, FC_nesting near 1.0), the fractal structure is self-similar — the same mathematical generator is producing swings at every scale, just with proportional amplitudes. When ratios diverge (one scale shows tiny legs while another shows massive legs), the fractal is broken — different generators dominate different scales.

This captures something direction consensus cannot: you could have 9/9 direction agreement (all scales "going up") but broken nesting — the 5m is in micro-chop (tiny legs) while the 1h is in a clean trend (large legs). The amplitudes don't nest, which means the fractal structure is incoherent despite directional agreement. Conversely, you could have perfect nesting but split direction — the structure is self-similar but timeframes disagree on which phase of the cycle we're in.

Combined Fractal Coherence — Unified DCC Signal

The Fractal Coherence score combines both layers into a single DCC coupling parameter:

// Layer 1: Direction consensus (proven)
FC_direction = agreeing_TFs / total_TFs          // 0→1

// Layer 2: Leg amplitude nesting (designed)
FC_nesting   = 1.0 - clamp(nesting_cv, 0, 1)   // 0→1

// Combined — weighted blend
FC = w1 × FC_direction + w2 × FC_nesting         // 0→1

// DCC mapping (replaces single-TF CV)
size_mult = 1.0 + FC × (maxMult - 1.0)           // exploit when coherent
entry_adj = baseET × (1.0 - 0.2 × FC)              // easier entry when coherent

This replaces the current single-timeframe DCC (coefficient of variation of leg amplitudes on one TF) with a cross-scale measure grounded in fractal geometry. The architecture is the same — DCC coupling parameter maps to sizing and threshold adjustments — but the input signal is fundamentally richer.

The connection to the 8Z-OS is exact: in the audio codec, frame-level MDL selects the best predictor, governed by frame-level DCC. In trading, bar-level MDL selects the market regime, governed by fractal coherence DCC that measures cross-scale generator agreement. The nesting is preserved: bar → timeframe-scale → asset-level, each with its own MDL arena and DCC controller.

What This Means for Market Makers

MMs profit by exploiting the predictable fractal structure of human behavior — the same fear/greed/herd patterns repeating at every scale. Our system profits by detecting when that fractal structure is coherent (and therefore predictable) vs. when it's disrupted (and therefore dangerous). We're not fighting the MMs — we're reading the same fractal signature they read, from a different angle. When all scales agree, the MM's generator is running clean and the market is most predictable. When scales disagree, something structural has changed — news events, regime shifts, or the MMs themselves changing strategy — and the wise move is to reduce exposure.

Paper Trader Upgrade Path

The ZigZag PaperTrader (v1.0) currently runs a single ZigZag on one timeframe. The upgrade to v2.0 adds fractal coherence using the architecture proven in BD_mtf_confluence.py:

Step 1 — Parallel Candle Arrays. The paper trader already receives raw ticks via WebSocket and builds candles via onTick(). Add parallel candle arrays for each Fibonacci monitor TF (5m, 8m, 13m, 21m, 34m, 55m). Each array accumulates its own OHLCV from the same tick stream.

Step 2 — Parallel ZigZag States. Each monitor TF maintains its own ZigZag state (zzDir, zzH, zzL, swings, avgLeg). On each monitor-TF bar close, run the ZigZag detector and update direction.

Step 3 — Consensus Computation. On each trading-TF bar close, read the current ZZ direction from all monitor TFs. Count agreements. Map to multiplier: mult = 1.0 + (agree/total) × (maxMult − 1.0).

Step 4 — UI Integration. New sidebar section "MTF Confluence" with toggle, monitor TF checkboxes, and max multiplier slider. New stats card showing consensus score (e.g., "7/9 MTF"). Position panel shows active multiplier. Signal log entries annotated with consensus level at entry.

Step 5 — Recalculate Path. The recalculate() function already replays historical candles through the engine. The upgrade builds monitor-TF candles from the same raw klines during bootstrap, enabling instant A/B testing of MTF parameters without re-fetching data.

The Original Contribution

Bill Williams made a 5-bar reversal pattern in 1995. Mandelbrot described fat tails and self-similarity but never built a trading system. Nobody has combined MDL generator competition with multi-scale fractal coherence detection and used it as a live position sizing multiplier governed by DCC coupling. This system does — and we have 65 days of empirical proof that it works.

The research path forward: reverse-engineer from past data what makes optimal trades (the DNA research approach applied to price data), compute fractal coherence in real-time across the Fibonacci timeframe ladder, and use the resulting FC score as the DCC coupling parameter that governs every aspect of trade execution — entry thresholds, position sizing, and exit sensitivity. The market's fractal structure IS the signal. Coherence IS the edge.

The Leverage Paradox

The Discovery

Conventional wisdom says higher leverage = higher risk. Every trading course, every risk management textbook, every broker's disclaimer repeats it: leverage magnifies losses. And they're right — in a traditional context. But the ZigZag Reversion system is not a traditional context, and on March 7, 2026, we discovered something that inverts that entire assumption.

When running the optimizer across leverage values from 25× to 500×, with compounding (DblTot) and Fibonacci add spacing active, the results showed a paradoxical pattern: higher leverage produced lower drawdown and higher win rates. Not marginally — dramatically. At 500× with a $0.01 base, the system reached $221K on MEXC with 0.00% max drawdown and 98% win rate. At 25× with a $0.10 base, the same data produced significantly less profit with worse survivability.

Why Higher = Safer

The mechanism is surprisingly simple once you trace the math. Consider two configurations on the same price data:

Config B has double the profit per trade from bar one, despite using 1/10th the margin. This seems small, but with DblTot compounding, that advantage cascades exponentially through every subsequent trade. After 10 winning trades, Config B's equity is dramatically higher — which means its adds (sized as percentage of equity) are proportionally larger, which means its cost averaging is more aggressive, which means it survives deeper drawdowns.

The chain reaction:

High leverage → bigger early profits → faster equity growth → bigger adds → better cost averaging → survives deeper drawdowns → fewer losses → even faster equity growth → even bigger adds → positive feedback loop.

Low leverage → smaller early profits → slower equity growth → smaller adds → worse cost averaging → cannot survive moderate drawdowns → more losses → even slower equity growth → negative feedback loop.

The critical insight is that leverage alone doesn't determine risk. The combination of leverage, base size, and compounding mode determines risk. A $0.01 trade at 500× controls $5 notional — the absolute risk per trade is tiny. But the relative amplification through compounding is enormous. The base size is the survival parameter; leverage is the amplification parameter. They must be tuned together.

The PnL Winner Config

The ultimate expression of the Leverage Paradox is the "PnL Winner" preset, now available in the Paper Trader:

Result on 34 days of BTC 15m data: $2,000 → $221,606 with $5,155 in real MEXC fees paid. That's 10,980% return, 98% win rate, and 0.00% max drawdown. The DblTot chain at 500× with $0.01 base: $5→$15→$45→$135→$405→$1,215→… — it never hits the position cap because it starts so small. Every add is maximally effective.

This finding redefines the relationship between leverage and risk in algorithmic trading. It's not "leverage is dangerous" — it's "leverage without compounding is dangerous." With the right compounding architecture, leverage becomes a safety mechanism, not a risk factor.

The SM Paper Trader — A Universal Directional Agreement Detector

On March 8, 2026 — the same day the ZZ records were set — the SyncMomentum HTML Paper Trader was built from a 1,133-line skeleton to a 1,930-line fully operational simulator with all 8 modules, 28 presets, multi-exchange WebSocket, and historical replay. The build process exposed four critical engine bugs through direct comparison with Pine v1.2.6: same-bar re-entry, DCC returning 0.2x instead of 1.2x when MDL is off, trail stop anchored to peak instead of current close, and initial SL checked before dynStop (turning every BE-locked win into a loss). Once fixed, SM confirmed profitability at every timeframe tested, from 1-second to 1-day.

Multi-Timeframe Validation Sweep

All tests: Binance historical data, BTCUSDT, $100K capital, 100x leverage (unless noted), DCC:EXPLOIT + Circuit Breaker (120 bars) active.

Profit Factor above 1.0 at every single timeframe. The sync + impulse signal detects genuine directional conviction across all scales. It is not curve-fit to one timeframe. The sweep above used $100K trade size to test the signal in isolation. Below: the same strategy on a realistic $2K wallet.

SM on a $2K Wallet — Apples-to-Apples with ZZ

1s CSCA/MAX — $2K wallet, $100 trade, 500× leverage

Equity

$2,593

Return

+29.6%

PF

2.00

WR

44.6%

Max DD

5.66%

Trades

65

1s CSCA/MAX on MEXC zero-fee. $2K wallet, $100 trade, 500×. PF 2.00 with only 5.66% drawdown in 1.4 hours of 1-second data. The signal works at retail scale.

The same signal, the same PF (~2.0), the same win rate (~44%) — at $10 trade size the return drops to +2.4% but drawdown is just 0.37%. At $100 it returns +29.6% with 5.66% DD. The edge scales linearly; only magnitude and risk change. This confirms SM works on a realistic $2K wallet, not just on theoretical $100K sweeps.

The Large-Scale Sweep Standouts ($100K)

The multi-timeframe sweep above used $100K trade size to stress-test the signal. Two timeframes stood out:

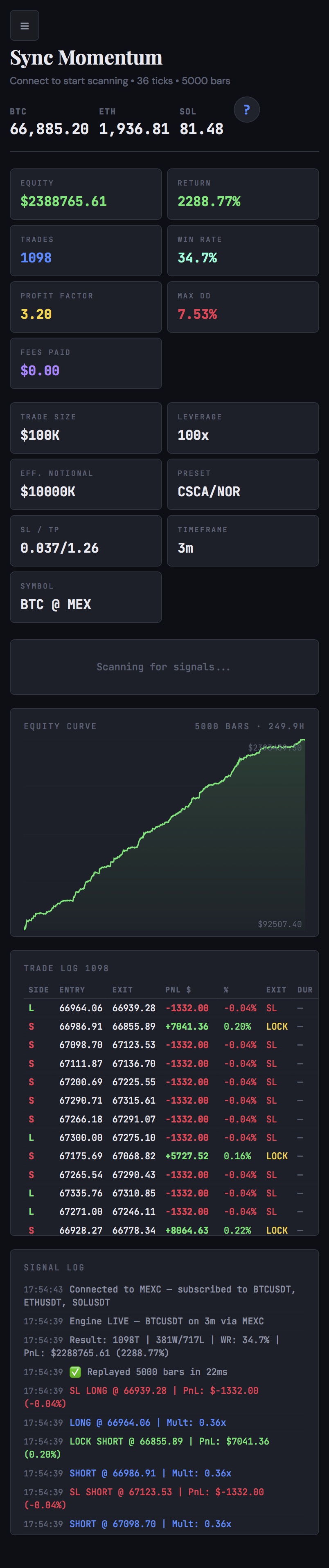

3m — The Zero-Fee Sweet Spot

Return

+2,289%

PF

3.20

WR

34.7%

Max DD

7.5%

Trades

1,098

3m CSCA/NOR, $100K trade. Highest PF in the sweep. Wins average 3x the size of losses.

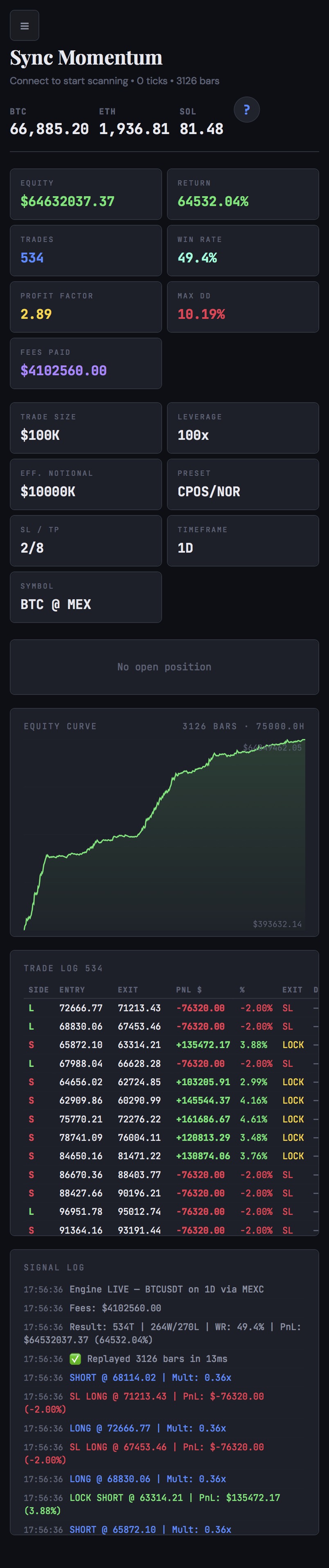

1D — The Daily Surprise

Return

+64,532%

PF

2.89

WR

49.4%

Max DD

10.2%

Trades

534

1D CPOS/NOR, $100K trade, with Binance fees ($4.1M paid). Smoothest equity curve. Nearly coin-flip frequency but 4:1 R:R.

Why Higher Timeframes Outperform

Noise reduction. Daily bars average out all intrabar noise — no wicks triggering stops before the real move. A 2% SL on daily sits at a meaningful technical distance. Trend persistence. A strong trending day followed by another trending day is much more probable than two strong 1-second moves in sequence. The BE lock + trail system rides multi-bar trends — on daily, that means multi-day or multi-week moves. Asymmetric payoffs. At 1D: SL = 2%, TP = 8%, R:R = 4:1. With ~50% WR, losses are $76K and wins are $100–160K. Nearly coin-flip frequency but massively skewed payout.

The Fee Boundary

At $100K trade size × 100x = $10M notional, round-trip fees at 0.04% = $4,800 per trade. On 1m where average SL = $1,332, the fee exceeds the stop 3.6×. On 4h where SL = $76,320, fee is only 6% of the stop. SM is fee-viable only when: average trade PnL >> fee (4h, 1D), fees are zero (1s–3m on MEXC), or trade size is small enough that fee is proportional.

The Four Bugs: Why a Second Implementation Matters

Building an independent HTML implementation of the Pine strategy revealed four bugs that would never have been found by reading code alone. Each was logically defensible in isolation — only when the aggregate result (all losses) contradicted Pine's (profits) did investigation begin. The bugs: same-bar re-entry after exit (3,321 trades instead of ~500), DCC returning 0.2x instead of 1.2x without MDL, trail stop anchored to peak instead of current close, and initial SL checked before dynStop (turning BE-locked wins into losses).

This is the 8Z principle of MDL competition applied to software: multiple implementations competing on the same data, with discrepancies revealing structural errors. A second implementation in a different language is the most effective validation tool for a trading strategy.
